OneUp Components - Aluminum Pedal

$144.50 USD

~~$144.50 USD~~ $144.50 USD

Sold out

Color: Black

SKU:B6SCX-01

Quantity

Free Shipping on Orders over $69
Fast and Easy 90-Day Returns
Best Price Guarantee

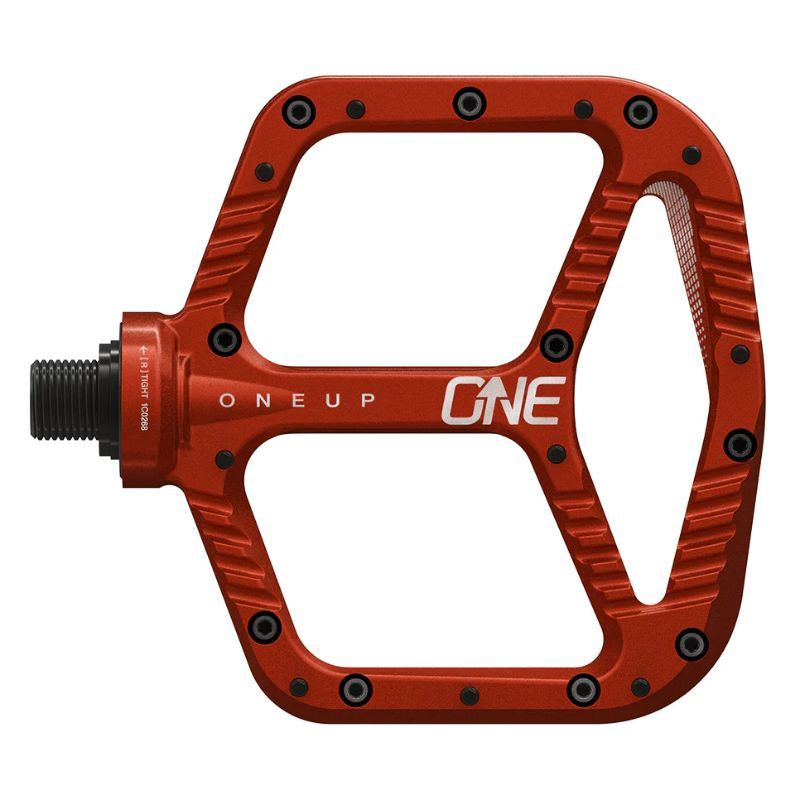

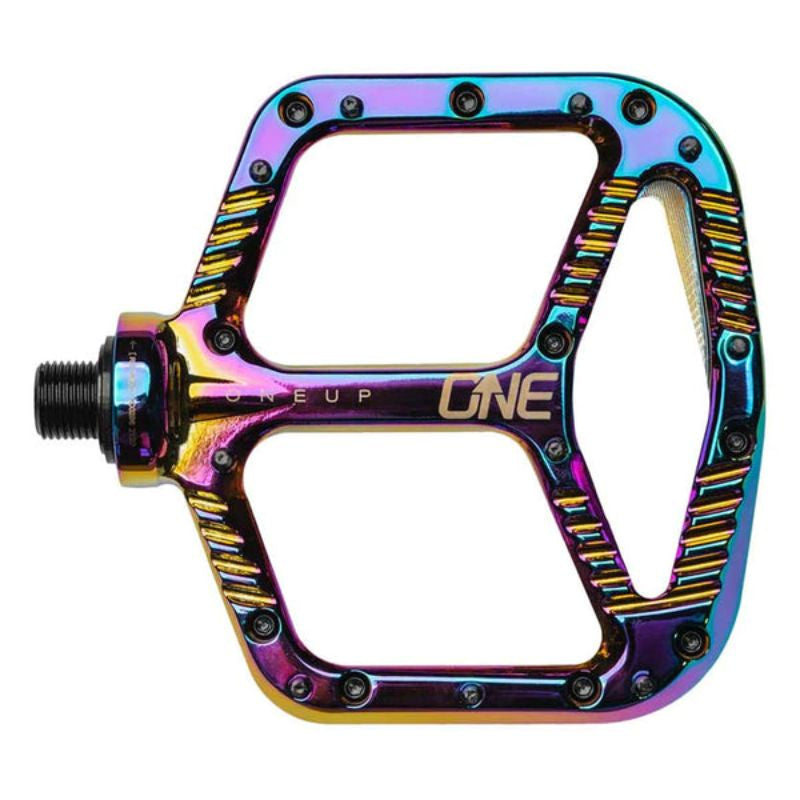

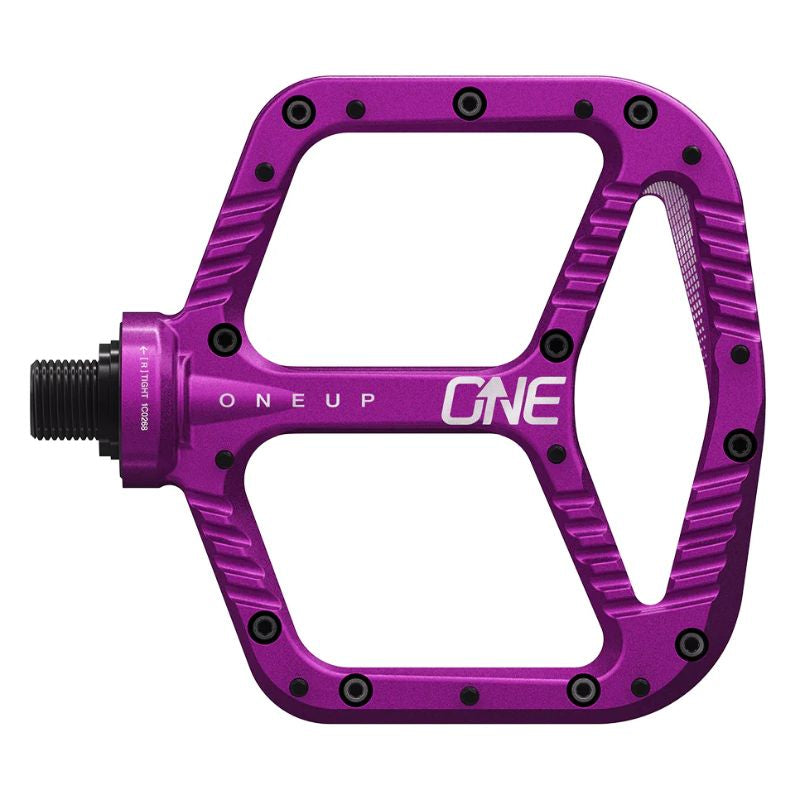

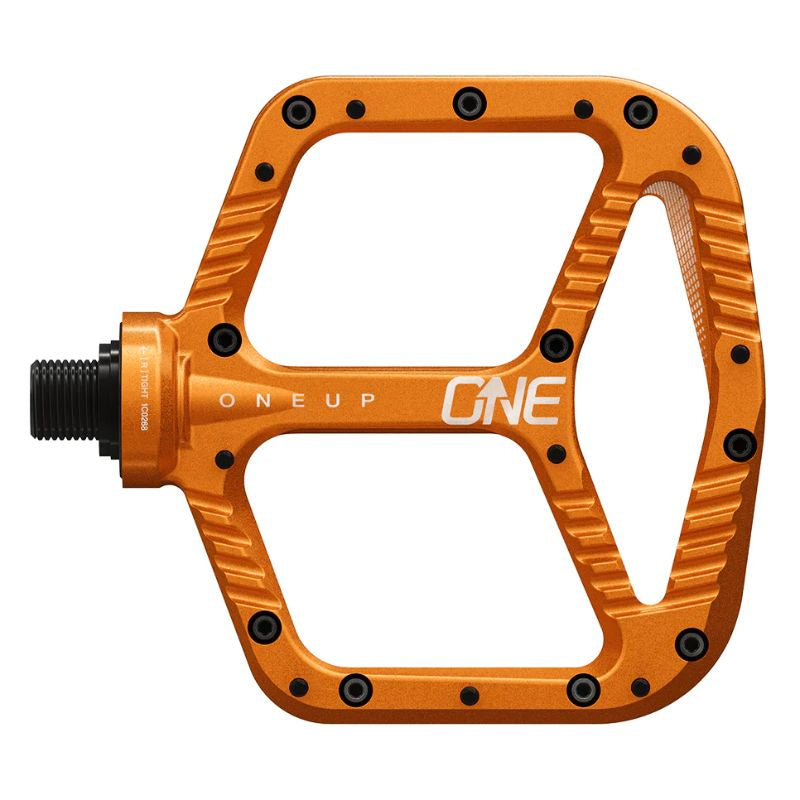

The OneUp Aluminum Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading hexagonal steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 386g, the OneUp Aluminum Pedals won't slow you down on the climbs. Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedals sitting in the natural arch of your foot. The ultra-thin design (only 8mm at the leading edge) gives you maximum clearance to reduce pedal strikes and deflect off trail obstacles. Clip Less, Ride More. When it s finally time to service your bearings, the unique cassette tool lock ring system makes re-greasing the bearings exceptionally fast and easy.

Features

10 rear loading custom hexagonal removable pins per side for maximum grip
Ultra-thin leading edge chamfered design to deflect off any obstacle
Fully sealed and serviceable design with built-in bearing extractor
Wide platform design for increased stability
Contoured shape provides the ultimate connected feel

Specifications

Weight: 386g
Platform Size: 115x105mm
# of Pins: 10 per side
Axle Material: Chromoly steel
Height: 8.3-12mm
Pin to Axle distance: 112mm
Body Material: 6061-T6 Aluminum
Ensure flange pedal washer and lip seal are assembled with flange side towards crank. In the following orientation.
Install with 8mm Hex. Torque to 35Nm (25 ft-lbs) Min
Currently, due to the deep counterbore of the crank arms, these pedals are not compatible with SRAM Carbon cranks.
These pedals are not compatible with crank boots without modification to the crank boots. We recommend removing crank boots before installation.
