DMM

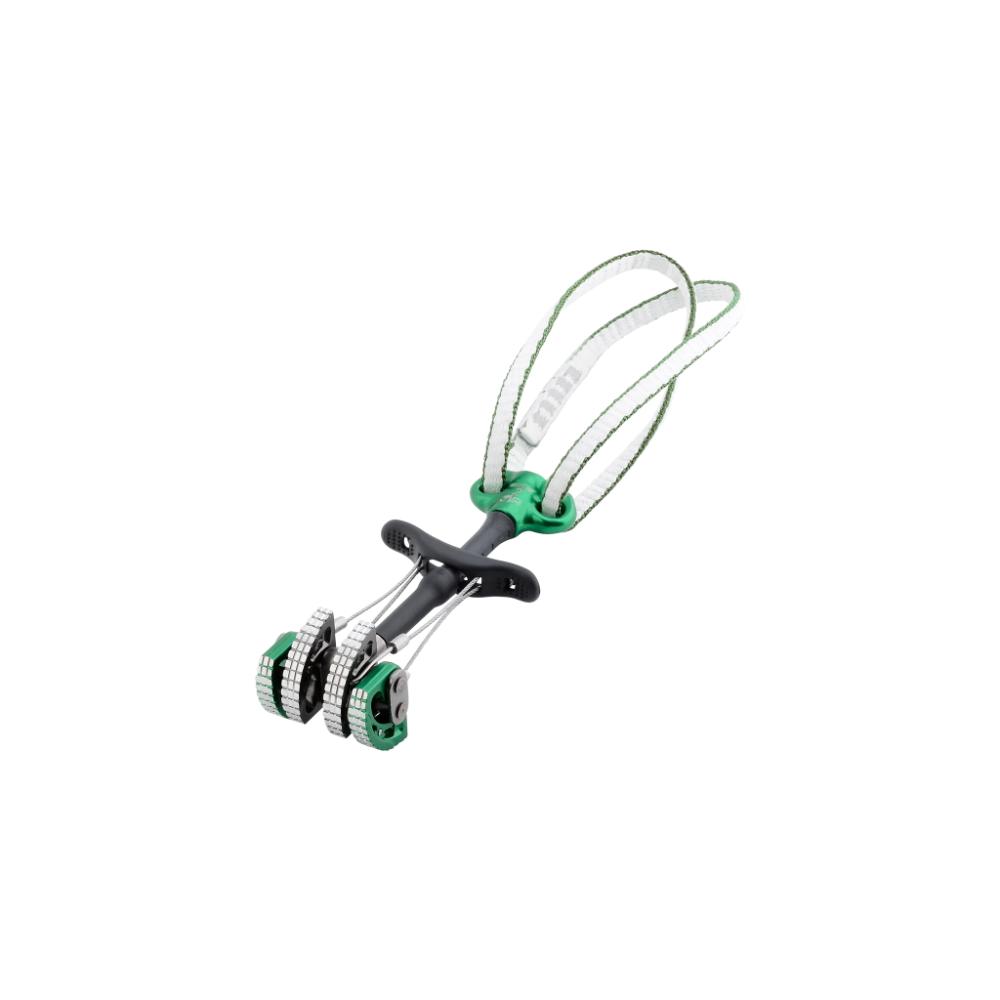

DMM - Dragon Cam - Green
DMM - Dragon Cam - Green
SKU:C1M4Z-03-02
Couldn't load pickup availability
- Free Shipping on Orders over $69
- Fast and Easy 90-Day Returns
- Best Price Guarantee
Share
Combining over 30 years manufacturing and design experience with a vast wealth of climbing knowledge, DMM created a state-of-the-art cam that makes the most of every placement. An increased contact area with a raw aluminium finish and additional bite points are the hallmarks of their revolutionary TripleGrip cam lobes. These features combine to increase friction between the cam lobe and the rock. The result is greater holding power and reduced walking, particularly in slick or soft rock types and sub-optimal placements. Single stem, dual axle design gives the Dragons 360° flexibility and the greatest expansion range, increasing both performance in sub-optimal placements and your chance of getting the right piece first time. The hot forged thumb press improves ergonomics while reducing the chance of a fumble from gloved hands or pumped fingers, while the extendable sling cuts down on quickdraws needed to extend placements, significantly reducing weight on your harness. The design of the thumb press means that the strength of the Dragon suffers no compromise when the sling is extended. The Dragon's low weight does not compromise its strength – they are rated to a huge 14kN from size 1 upward and the additional material in the lobes has improved their resistance to
Features
Features
- TripleGrip cam lobes give increased holding power and reduce walking
- Dual axle, single stem design for 360° flexibility and a large expansion range
- Ergonomic, hot forged thumb press with extendable 8mm Dyneema sling
- 13.75° cam angle for high holding power
Specifications
Specifications

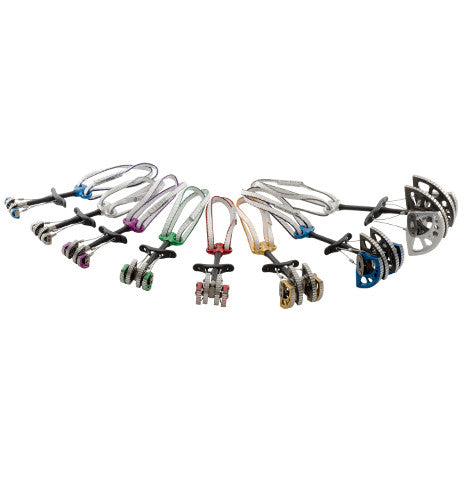

Product Name/ Size | Active Strength | Passive Strength | Weight | Certification |
---|---|---|---|---|

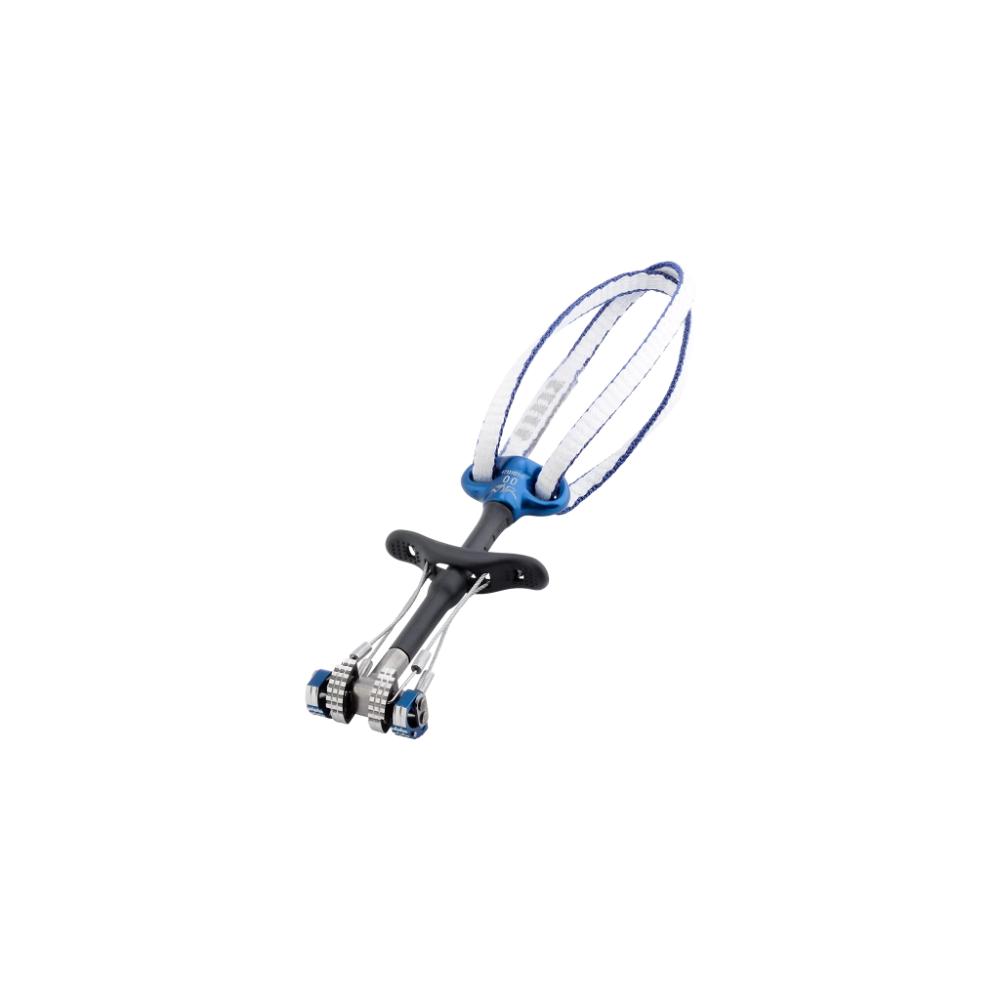

Dragon 00 | 10kN | 9kN | 75g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 0 | 14kN | 12kN | 85g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 1 | 14kN | 14kN | 103g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 2 | 14kN | 14kN | 117g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 3 | 14kN | 14kN | 128g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 4 | 14kN | 14kN | 154g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 5 | 14kN | 14kN | 208g | EN12276:2013, UIAA 125 Frictional Anchors |
Dragon 6 | 14kN | 14kN | 299g | EN12276:2013, UIAA 125 Frictional Anchors |

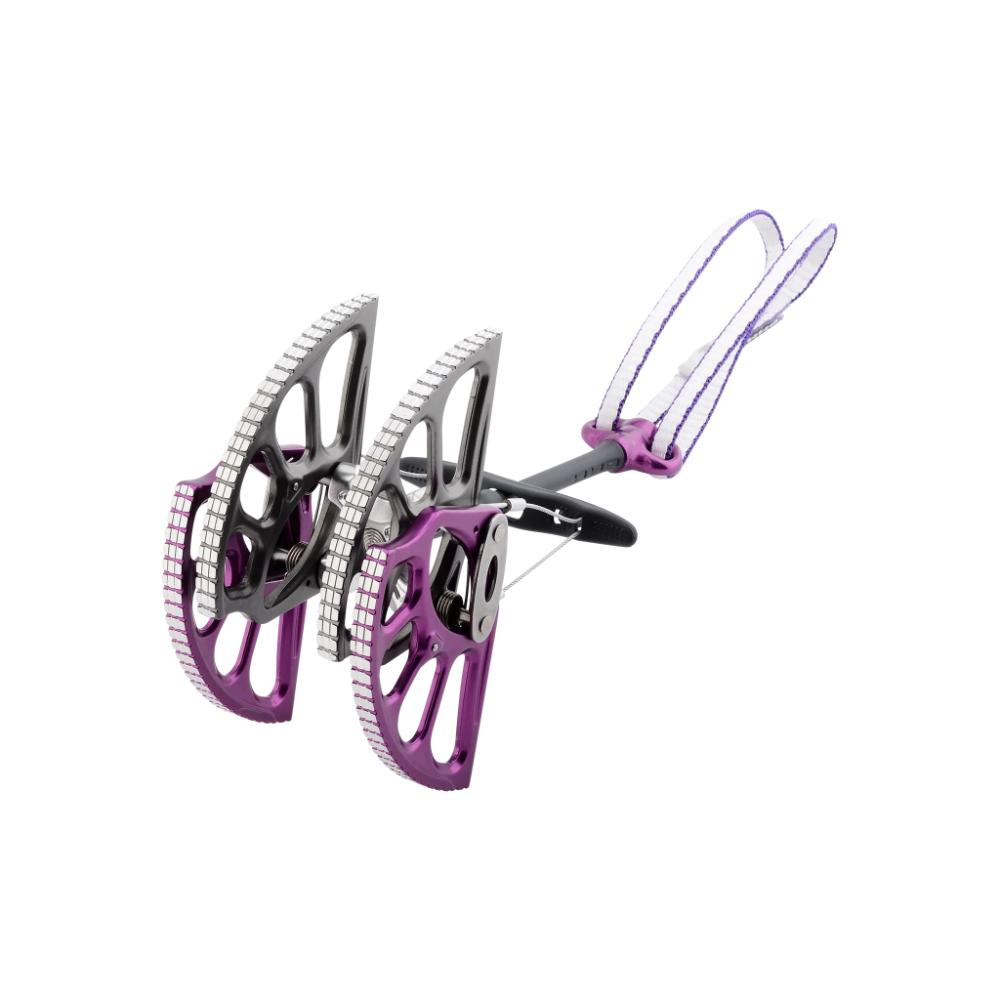

Dragon 7 | 14kN | 14kN | 362g | EN12276:2013 |

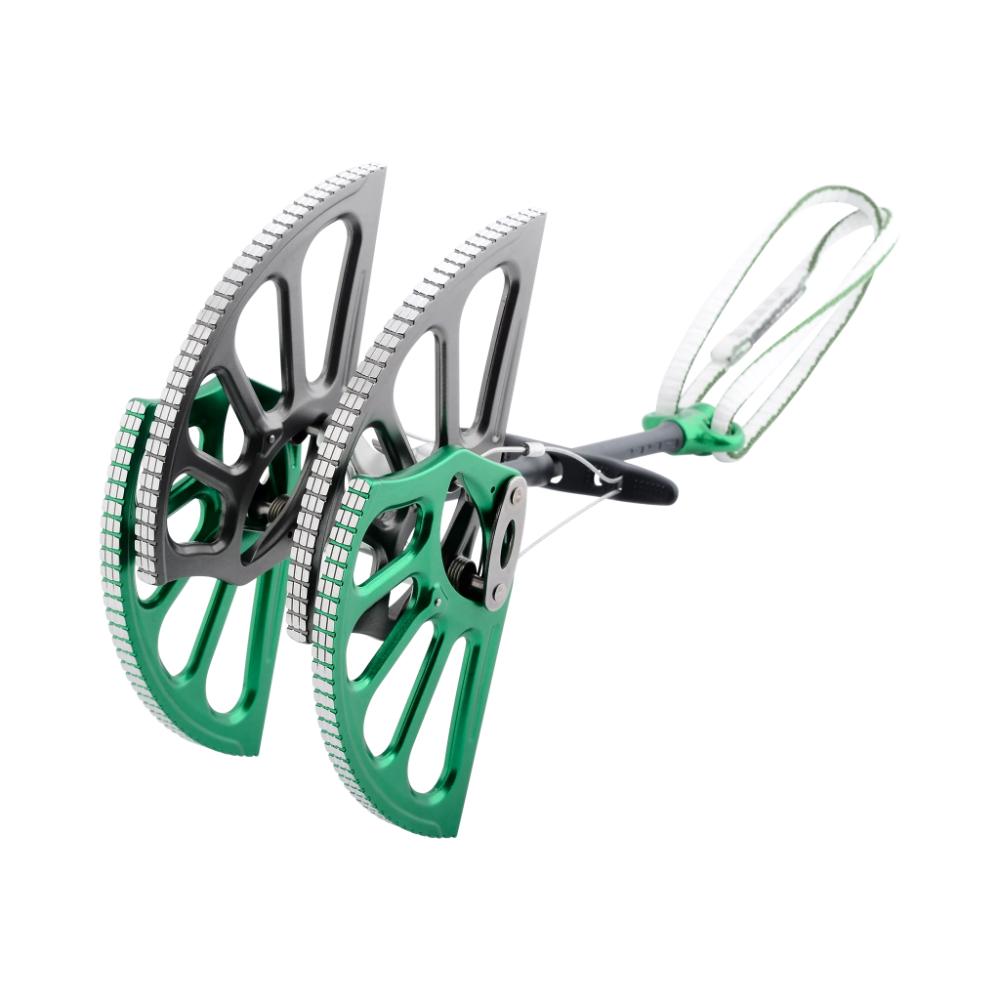

Dragon 8 | 14kN | 14kN | 515g | EN12276:2013 |
