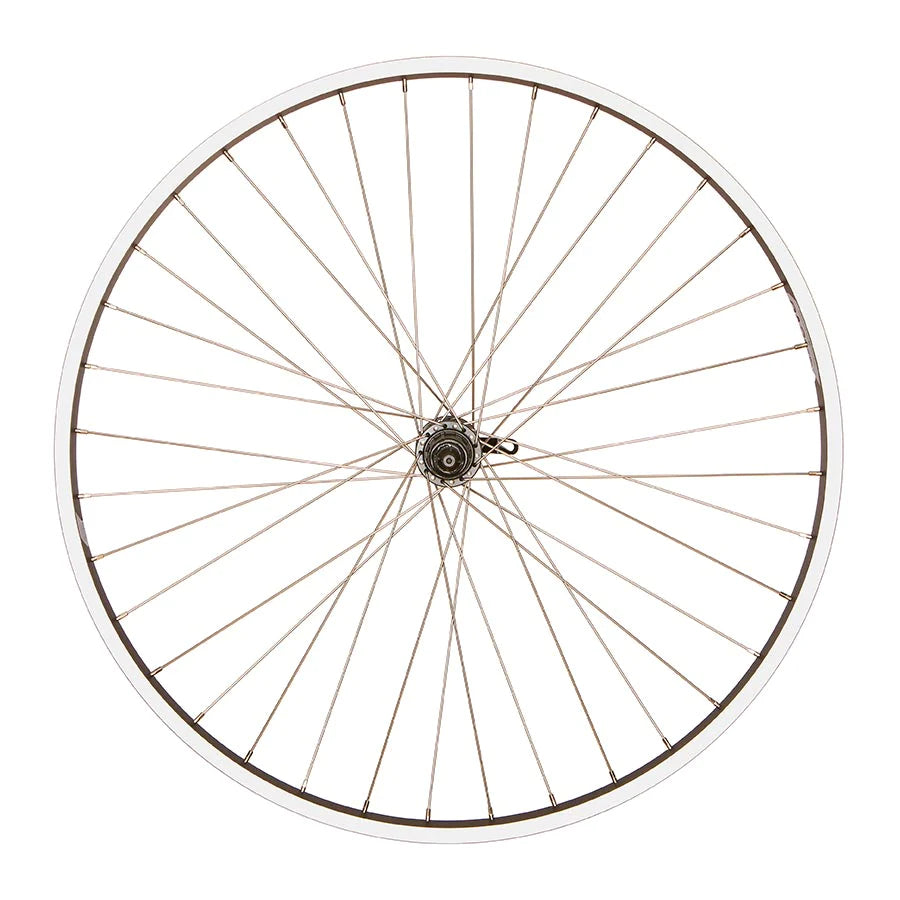

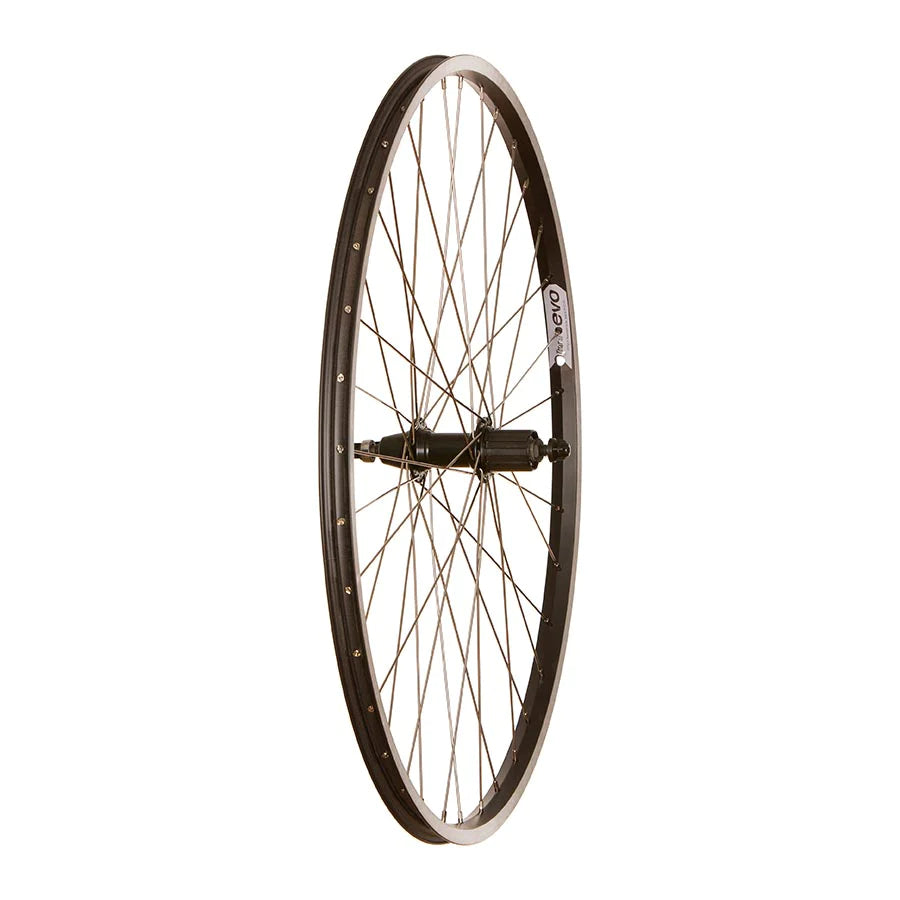

Tour 20 Front 700c QR Wheel Rim - 622x100 36

Overview

The Evo Tour 20 Rim 700c Black Wheel is a versatile and reliable option for your road or gravel bike. The rims are made of double-walled aluminum alloy with a pinned joint construction, ensuring durability and strength for any terrain. The rims are anodized with a sleek black finish, giving your bike a modern look. The rims have an inner width of 19.8mm, allowing for a range of tire sizes between 700C x 28 to 42 or 29" x 1.5" to 2.25". The rims are drilled for Schrader valves and have 36 holes, providing excellent compatibility with a variety of tire and valve combinations. The front hub is made of alloy with a sealed, quick-release hollow CrMo axle of size M9x100mm. The rear hub comes in two options: the freewheel hub with a quick-release, hollow CrMo axle of size M10x135mm, or the Shimano HG-compatible freehub with a quick-release, hollow CrMo axle of size M10x135mm. Both the hubs are sealed and adjustable, with anodized black finish and come with quick-release binders included. The Evo Tour 20 Rim 700c Black Wheel is assembled in North America by experienced wheelbuilders using Sapim 14G stainless steel spokes and 14mm brass Polyax nipples. With this wheel, you can confidently explore any terrain with ease and style.

Specifications

• Wheel Tire Type: Clincher
• Wheel-Brake Comp.: Rim
• Axle Type: QR
• Rims: Evo Tour 20
• 700C / 29" (ETRTO 622)
• Inner width: 19.8 mm
• Recommended tire size range: 700C x 28 to 42 / 29" x 1.5" to 2.25"
• Anodized black finish
• Pinned joint
• Drilled for Schrader valve
• 36 holes
• Front hub (-01): Alloy, Sealed, Quick Release, Hollow CrMo axle M9x100mm
• Rear hub (-02): Alloy, Sealed, Freewheel, Quick Release, Hollow CrMo axle M10x135mm
• Rear hub (-03): Alloy, Sealed, Shimano HG compatible Freehub, Quick Release, Hollow CrMo axle M10x135mm
• Anodized black finish
• Adjustable bearings
• Quick Release Binders Included
• Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes and 14mm Brass Polyax Nipples
• Rim Construction: Single wall
• Rim inner width range: 0-21.9mm
• Rim Internal Width: 20mm
• Rim Material: Aluminum
