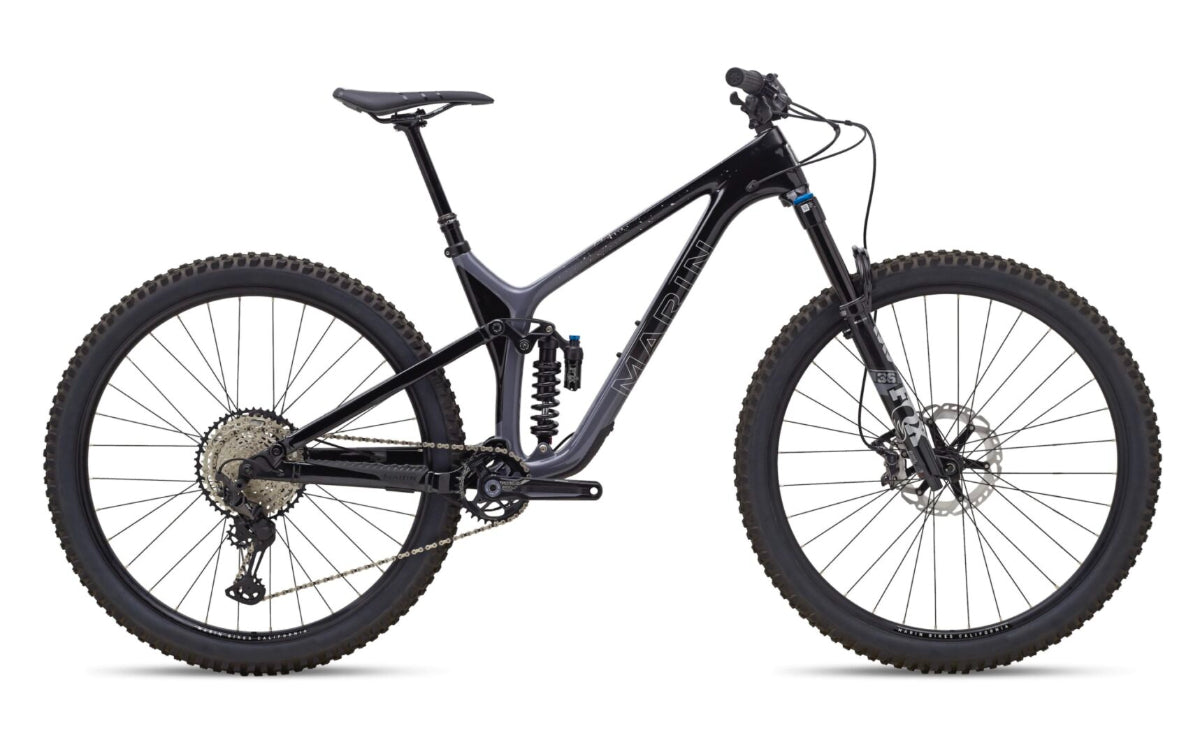

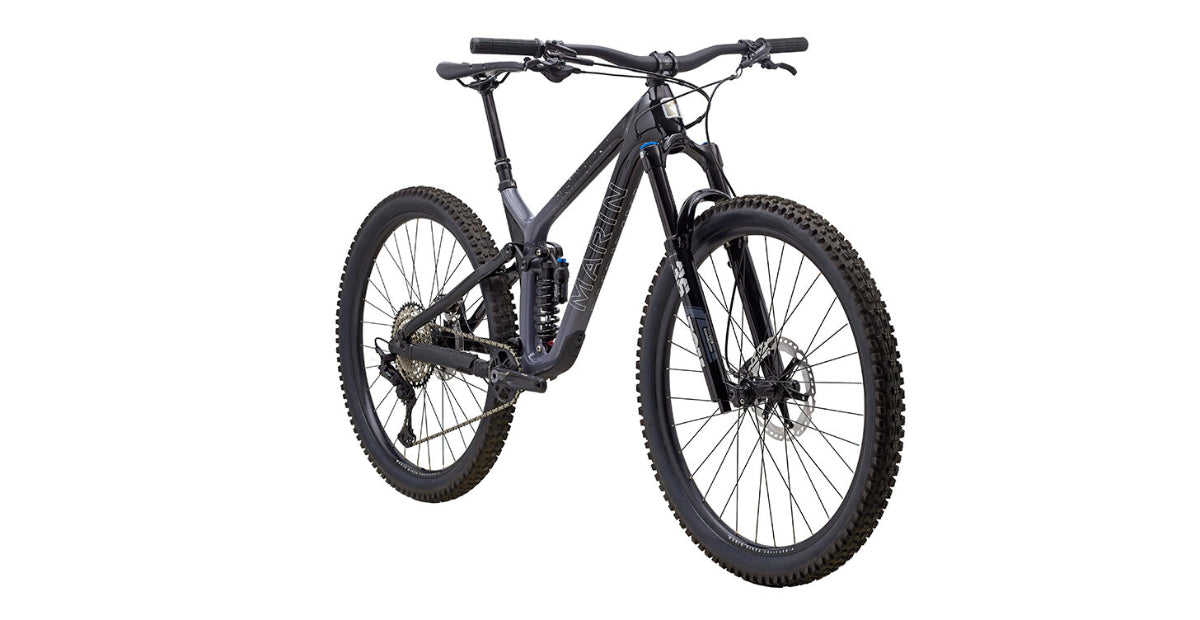

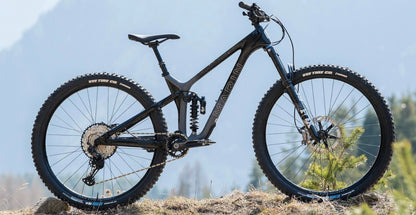

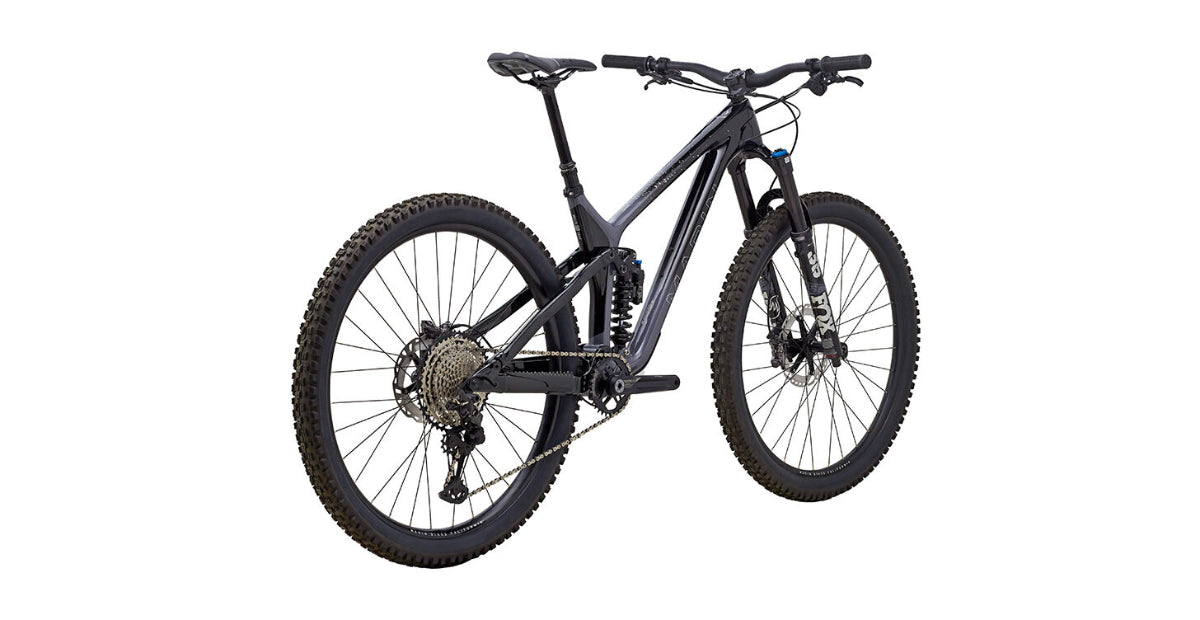

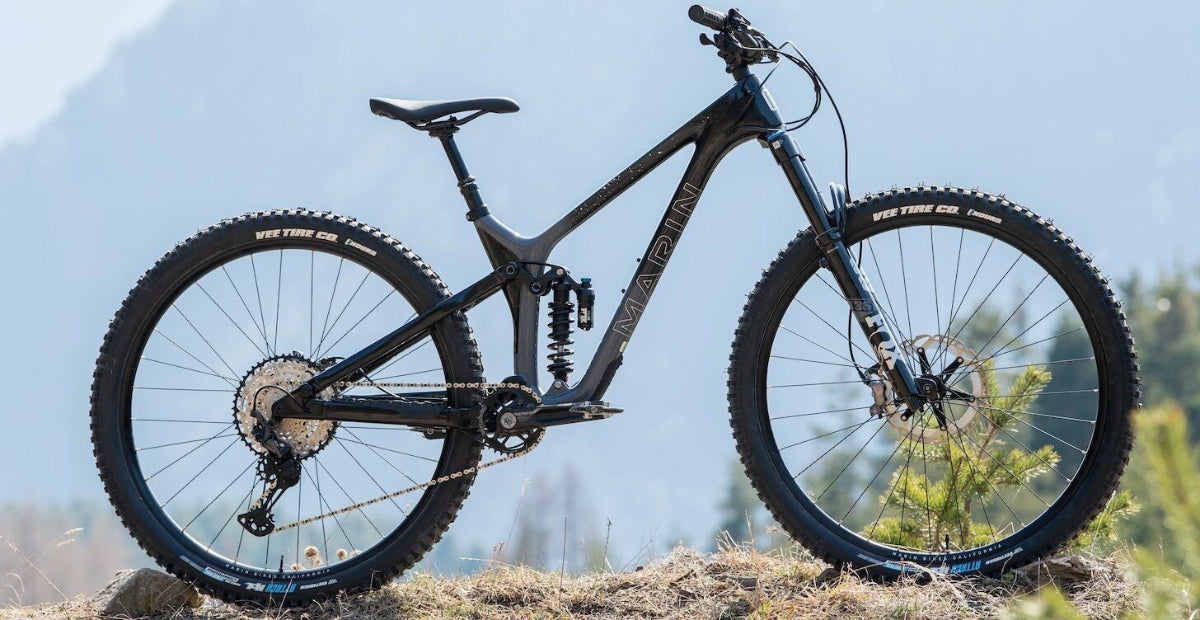

Rift Zone CXR 29 - Gloss Grey/Carbon

Overview

The Marin Rift Zone CXR is the newest and rowdiest member of the Rift Zone Carbon lineup, designed around a 140mm travel fork, paired with the included Fox Factory Coil rear shock.

Specifications

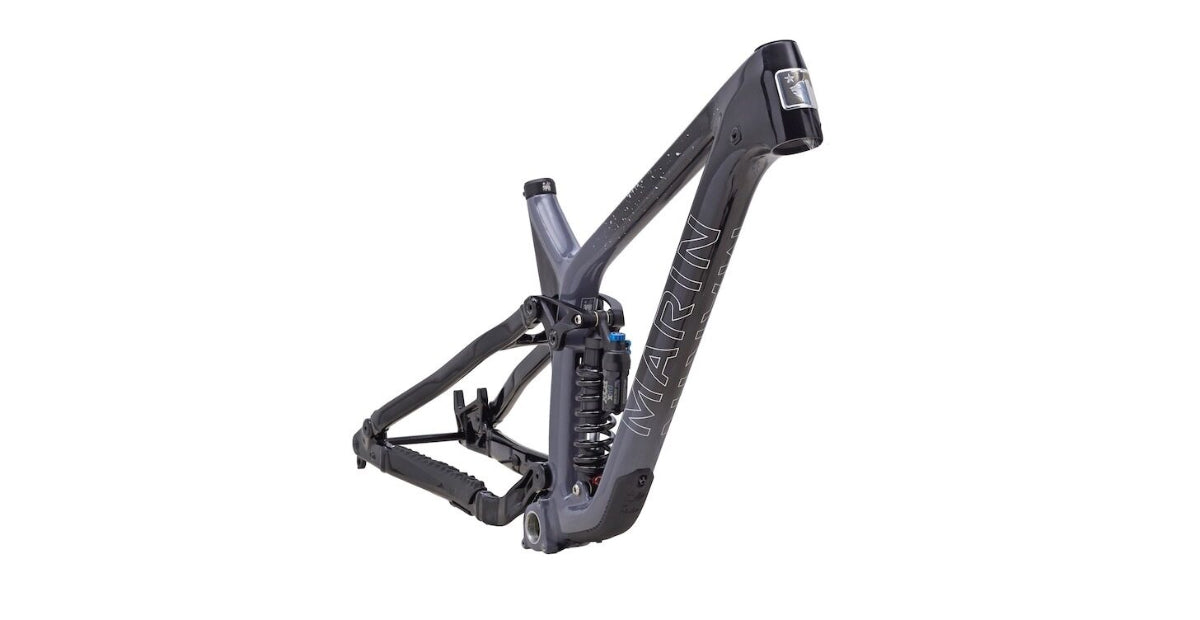

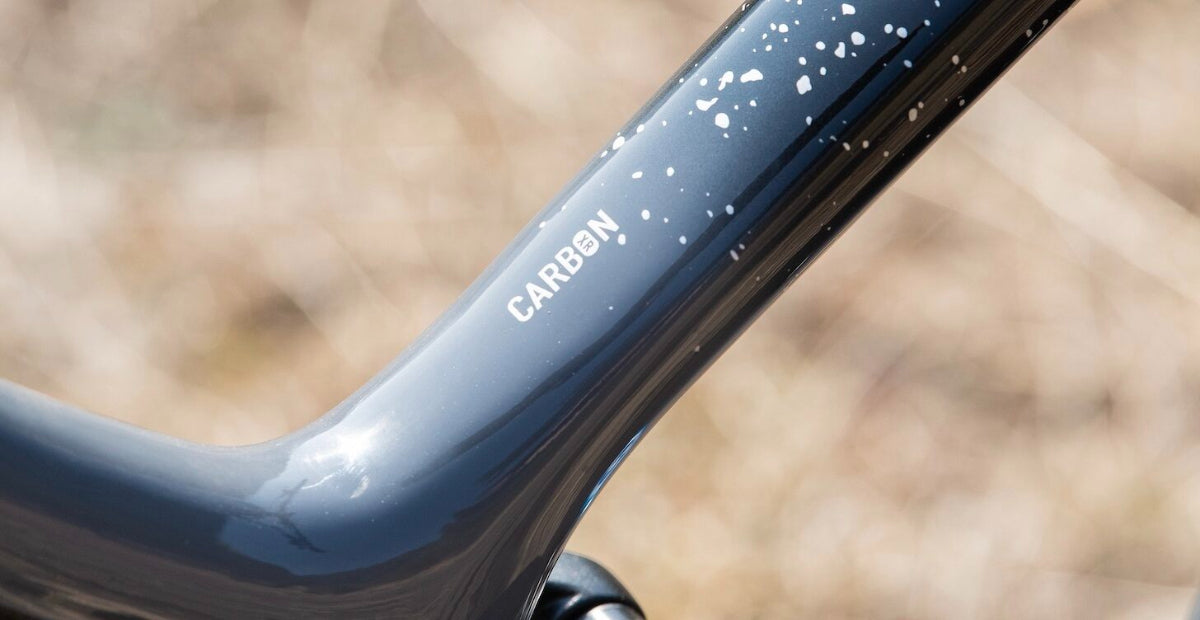

• Frame: Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
• Front Suspension: Fox Performance Elite Float 36, 140mm Travel, GRIP 2 Damper, 110x15mm Kabolt Axle, 44mm Offset

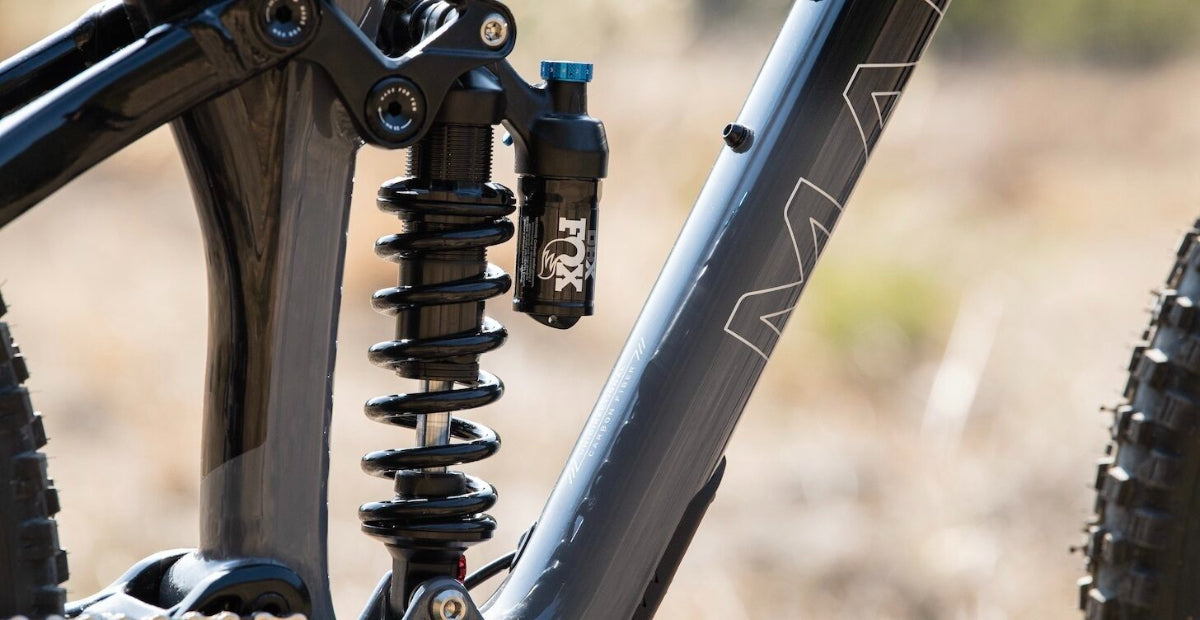

• Rear Suspension: Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compression Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom. Spring rates: S = 350lb, M = 400lb, L = 450lb, XL = 500 lb
• Rims: Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
• HUB, Rear: Shimano, Microspline 148x12mm, Disc, 32H
• HUB, Front: Shimano, 110x15mm, Disc, 32H
• Spoke, Nipples: 14g Black Stainless Steel
• Tires: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible
• Derailleur, Rear: Shimano XT, 12-Speed, SGS
• Derailleur, Front: -
• Shift Lever: Shimano SLX 12-Speed, I-Spec EV
• Crankset: FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
• Bottom Bracket: MEGAEVO BB, 73mm BSA Threaded
• Chain: KMC X-12 Silver and Black
• Cassette: Shimano SLX M7100, 12-Speed, 10-51T
• Brake, Front: Shimano XT, 4-Piston Hydraulic Disc, Brake 203mm Rotor
• Brake, Rear: Shimano XT, 4-Piston Hydraulic Disc Brake, 180mm Rotor
• Brake Levers: Shimano XT Hydraulic, I-Spec EV

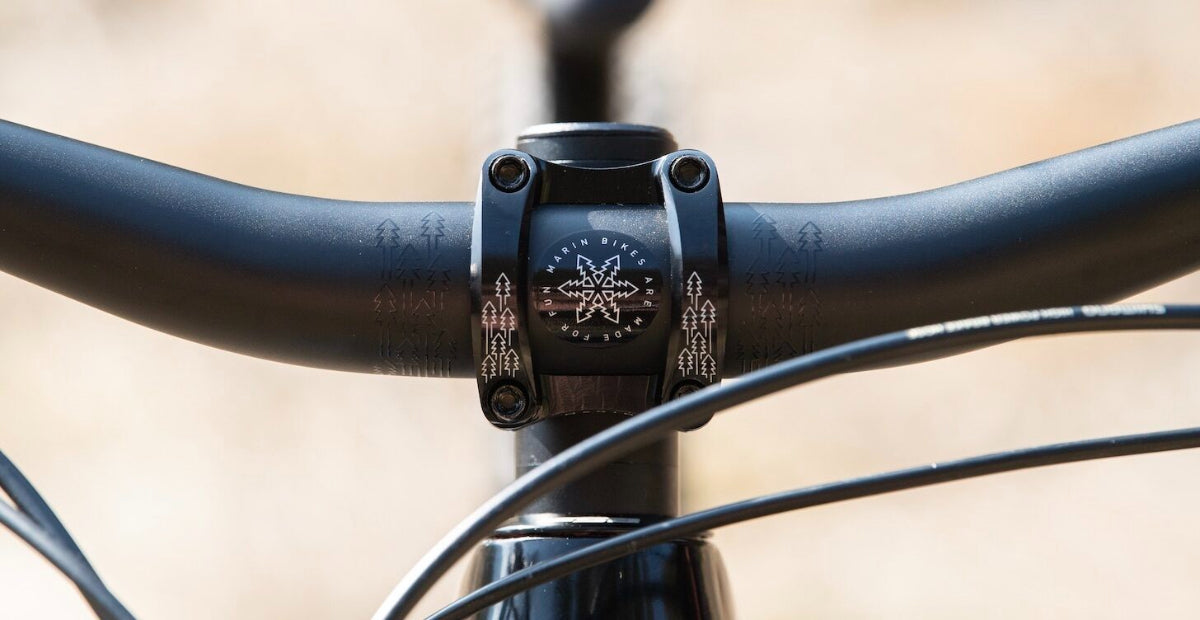

• Handlebar: Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back
• Stem: Marin CNC Stem, 35mm Length, 35mm Bar Bore
• Grips: All New Marin Single Clamp Locking
• Headset: FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
• Seatpost: X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
• Saddle: Marin Trail Speed Concept Pro
• Pedals: -
• Extras: Bolt-On Thru-Axle
