Niner

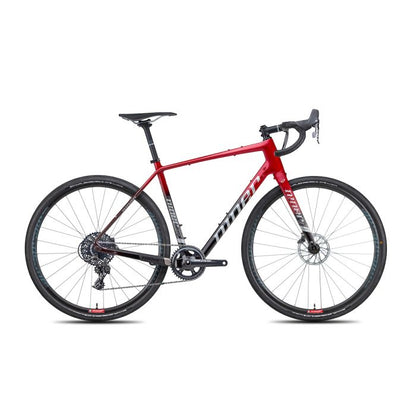

Niner - RLT 9 RDO 2-Star - Blood Red

Niner - RLT 9 RDO 2-Star - Blood Red

$2,199.99 USD
$3,399.00 USD $2,199.99 USD
35% off Sold out
Shipping calculated at checkout.
Color: Blood Red
Size (cm)

HZSXZ-02-56

Rather than designing a no-fun, no-frills, uber-light and too-stiff carbon chassis for Niner's newest RLT 9 RDO, they built you a bike that you'll want to ride all the time, to any place. With extra tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere, not just on your Strava segments.

Features

  • Room to Roam: Niner RLT gravel bikes have room to fit 700x50c tires (or 650b x 2.0).
  • Integrated Frame Mounts: So many ways to carry all your adventure gear. 26 threaded mounts to fit custom bags, bottles, racks, fenders, lights, and more.
  • Fireroad Geometry: Whether you're riding across town or across the country, the RLT 9 RDO has a longer chainstay, a lower bottom bracket height and a slacker headtube angle to keep you comfortable.
  • Interchangeable Wheel Size: Don't let the terrain stop you from riding. The Niner RLT 9 RDO can fit both 700c and 650b wheels, for ultimate versatility and adaptability to suit any off road pursuit.
  • Biocentric Bottom Bracket: Fit any drivetrain, geared or singlespeed. No bolt-on hubs, no chain tensioners cluttering your ride, no brake adjustments with gear changes.

Specifications

Available frame sizes 47cm, 50cm, 53cm, 56cm, 59cm, 62cm Available colors Avalanche Grey/Slate; Blood Red/Silver
Frame NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE Fork NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
Shock N/A Tubes / Sealant STANS NOTUBES SEALANT (2X 2OZ BOTTLES)
Front wheel NINER ALLOY, 22.5MM INTERNAL WIDTH, CENTERLOCK, 100 X12MM Rear wheel NINER ALLOY, 22.5MM INTERNAL WIDTH, CENTERLOCK, 142 X12MM
Front Tire SCHWALBE G-ONE ALLROUND PERFORMANCE RACEGUARD TLE, 700 X 40 Rear tire SCHWALBE G-ONE ALLROUND PERFORMANCE RACEGUARD TLE, 700 X 40
Brakes SRAM APEX 1 HRD FM Brake levers SRAM APEX 1 HRD
Brake rotors SRAM CENTERLINE 160/160MM CL Chain SRAM PC 1130 11SP
Front shifter SRAM APEX 1 Rear shifter SRAM APEX 1 11SP
Front derailleur N/A Rear derailleur SRAM APEX 1 LONG CAGE
Cassette SRAM PG 1130 11SP 11-42T Crankset SRAM APEX 1 40T
Bottom bracket PRESTINE PF30 THREAD TOGETHER Saddle NINER CUSTOM WITH CHRO-MO RAILS, EMBOSSED NINER GRAPHIC
Seatpost NINER ALLOY Handlebar EASTON EA50 AX
Stem NINER ALLOY Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Grips NINER BAR TAPE Approximate weight 22.3 lbs

Measurements

Frame Mounts and Fittings 2 Inner Triangle Bottle Mounts, rack and fender mounts, accessory mounts on fork. Rear suspension travel n/a
Maximum front suspension n/a Fork rake 45mm
Shock size n/a Shock mounting hardware N/A
Suggested shock sag n/a Seatpost size 27.2mm
Seat collar size 31.8mm Cable routing Full Sleeve internal, Di2 compatible
Front derailleur type n/a Headset size 1.125" X 1.5" TAPERED INTEGRATED (CAMPY STYLE) HEAD TUBE, HEADSET INCLUDED, CANE CREEK DESCRIPTION: IS42/28.6 | IS52/40
Pivot bearing specs n/a Chainring compatibility Compatible With Standard 1x and 2x systems
Maximum chainring size 1x - 48T; 2x - 50/34T Q-Factor 168mm
ISCG compatibility no Bottom bracket type 68MM PF30 BB SHELL (ADAPTORS REQUIRED FOR BSA TYPE BBs)
Biocentric 30 compatibility yes Brake mount type flat mount (30mm rear)
Maximum rear rotor size 160mm Rear wheel spacing 12x142mm
Rear wheel through-axle spec M12 x 1.75P x 174L Front wheel axle spacing 12x 100mm thru axle
Front wheel through-axle spec M12 x 1.5P x 125L Max tire size 700x50c or 650b x 2.0 (Tires vary by brand, some brands may not fit)
