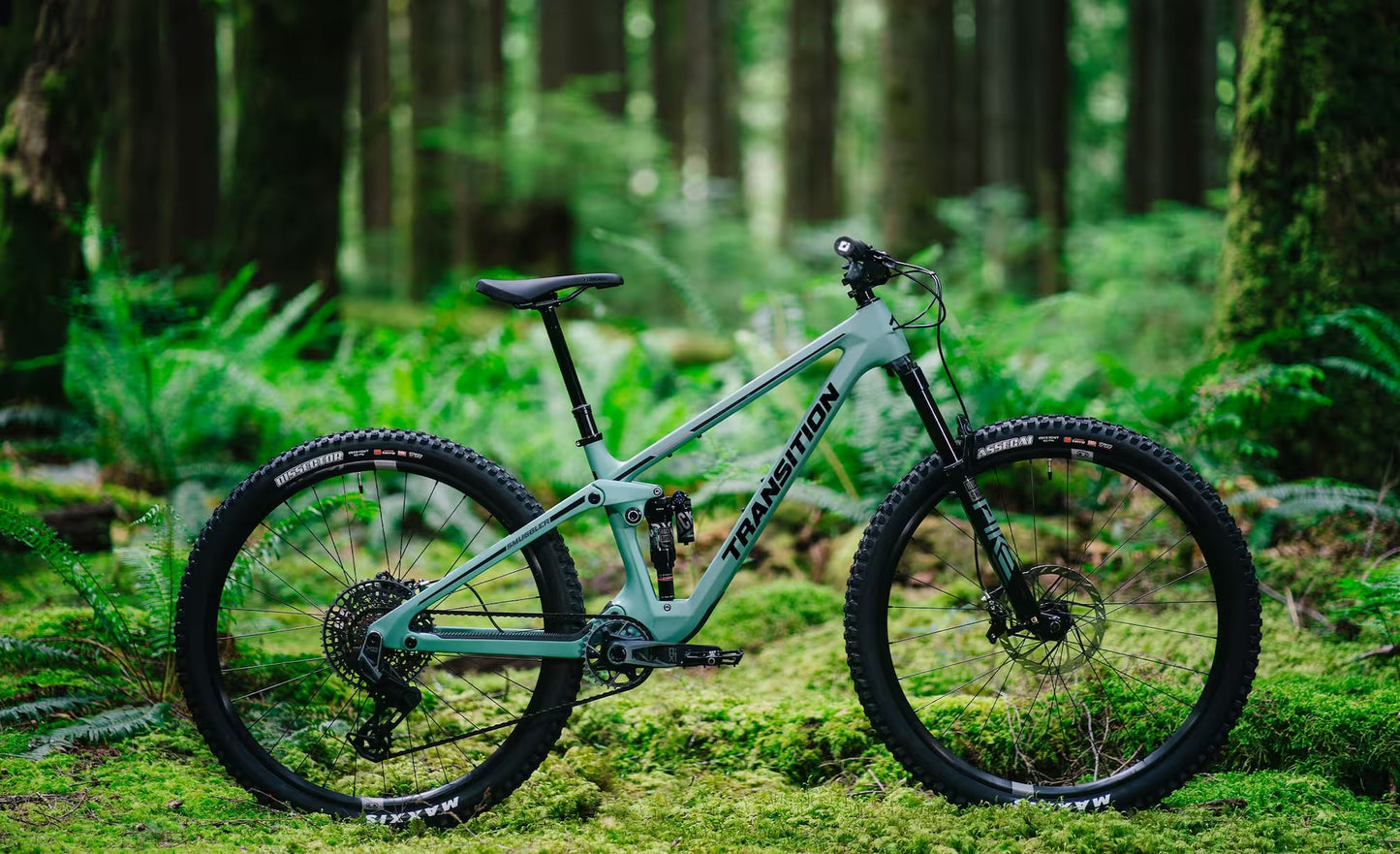

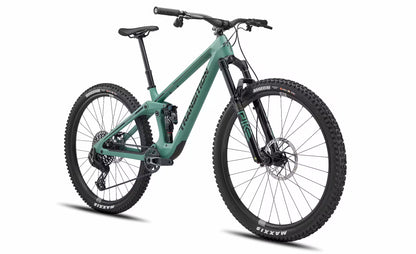

Smuggler Alloy Deore - Juniper

$3,499.00

~~$3,499.00~~ $3,499.00

Sold out

Shipping calculated at checkout.

Color: Juniper

Size

SM MD LG XL

SKU:RS7SU-01-SM

Quantity

Collect 3499 points with OGE Rewards

Join for free or log in

Overview

The Transition Smuggler Alloy Deore is a versatile trail bike built for riders who demand capability without compromise. Its alloy frame delivers responsive handling and durability across varied terrain, while the Shimano Deore drivetrain components provides reliable shifting and climbing power. Designed for adventure, the Smuggler excels on technical descents and rocky climbs alike. Whether you're exploring local trails or pushing into backcountry terrain, this bike combines efficiency with confidence-inspiring geometry. Perfect for intermediate to advanced riders seeking a dependable all-mountain platform.

Features

Dual 29" Wheels - Clearance to run up to 2.4" tires
140mm Front and 130mm rear travel - The perfect amount of travel for moving around the mountains.
Drop in Headset Bearings - Allows for simple installation and servicing, saves unnecessary weight, and is more durable than traditional press-in headset cups.
Improved Cable Routing - Clean headtube cable routing for precise cable management. Cable entry near the front of the headtube insures less frame contact during handlebar rotation and better overall looks.
Internal Cable Routing - Guide tubes inside the frame for super easy setup.
Size Specific Chainstays - As the frame sizes grow, so do the chainstays to keep rider weight balanced on the bike

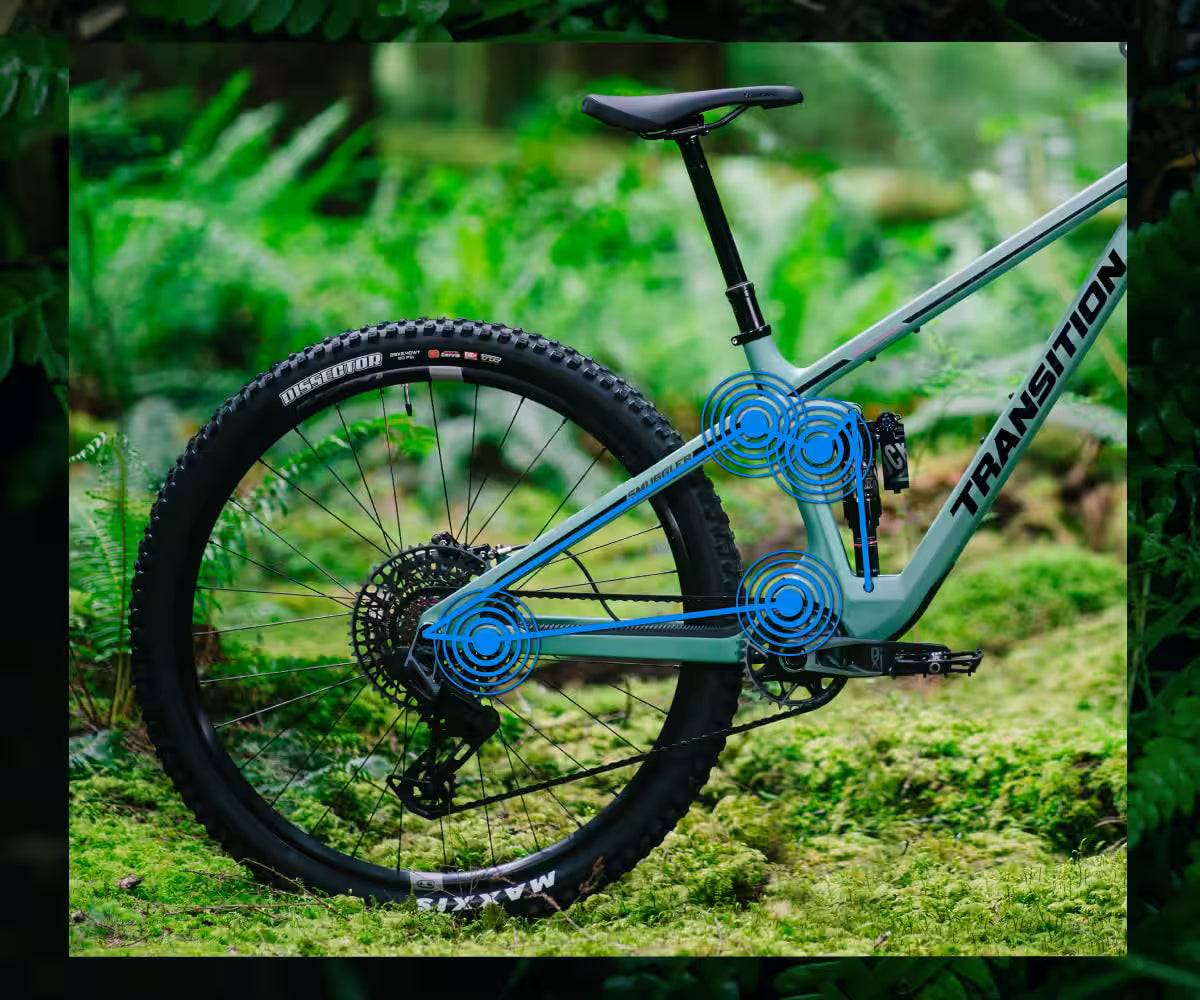

27% Shock Progression - Allows the bike to be incredibly responsive to the trail while still being able to take large hits
Gear Accessory Mounts

Specifications

Frame: Smuggler Alloy 130mm
Headset: FSA no. 57E
Handlebar: RaceFace Chester SM (800x20mm) MD/LG/XL/XXL (800x35mm)
Stem: RaceFace Aeffect R (40mm)
Suspension:
- Front (Fork):RockShox Psylo Gold RC (140mm)
- Rear: RockShox Deluxe Select (210x50mm)
Rim: WTB ST i30
Spokes: Pillar Double Butted
Hubs: Novatech D791SB/D902SB
Tires: Maxxis Assegai EXO/TR (2.5) Front, Maxxis Assegai EXO/TR (2.4) Rear
Drivetrain:
- Shift Lever:
- Crankset: Shimano Deore M6100 (30t/170mm)
- Chain: Shimano Deore M6100
- Cassette: Shimano Deore M6100 (10-51t)
Brakes: Shimano Deore M6120 4 Piston
Rotors: Shimano RT66 (203/180mm)

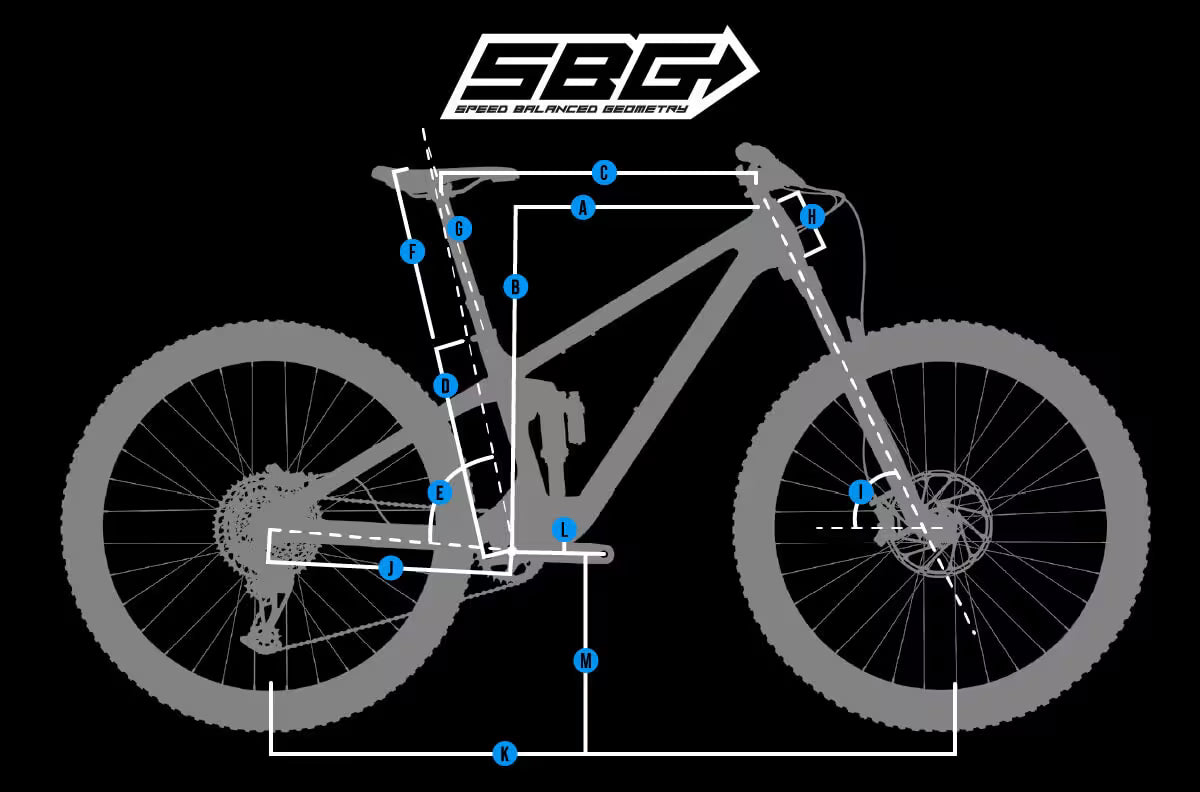

		SM	MD	LG	XL	XXL
							A.REACH	430	460	485	510	535
B.STACK	607	616	625	635	644
C.EFFECTIVE TOPTUBE LENGTH	555	588	617	645	670
D.SEATTUBE LENGTH (CARBON)	360	390	430	460	490
D.SEATTUBE LENGTH (ALLOY)	375	390	430	460	490
E.EFFECTIVE SEATTUBE ANGLE	79.3	78.6	78.1	77.6	77.3
F.SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780	820
G.ACTUAL SEATTUBE ANGLE	72	72	72	72	72
H.HEADTUBE LENGTH	100	110	120	130	140
I.HEADTUBE ANGLE	65	65	65	65	65
J.CHAINSTAY LENGTH (CARBON)	435	435	440	440	440
J.CHAINSTAY LENGTH (ALLOY)	437	437	443	443	443
K.WHEELBASE (CARBON)	1179	1213	1247	1277	1306
	K.WHEELBASE (ALLOY)	1181	1215	1250	1280	1309
L.BOTTOM BRACKET DROP	35	35	35	35	35
M.ESTIMATED BOTTOM BRACKET HEIGHT	340	340	340	340	340
