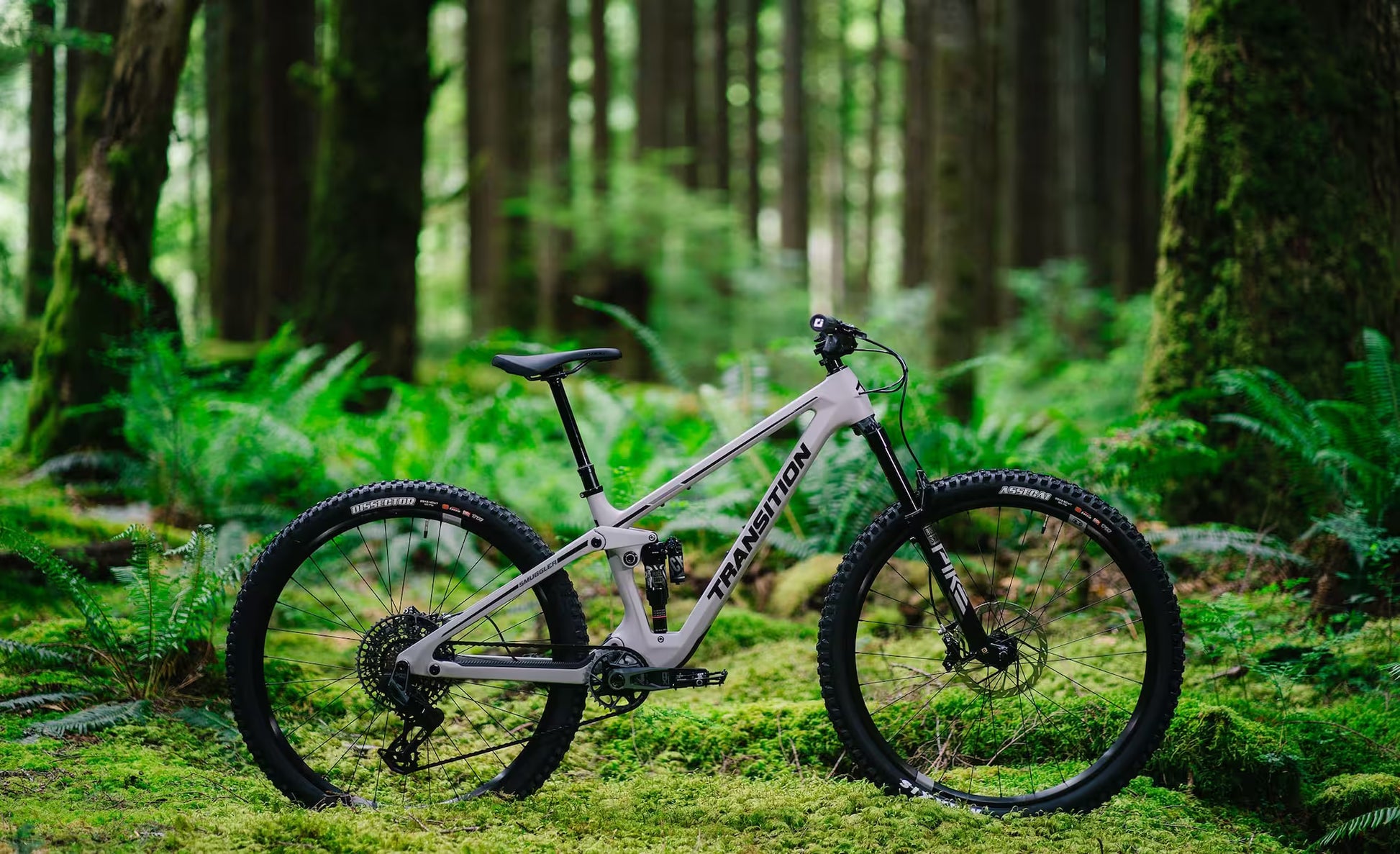

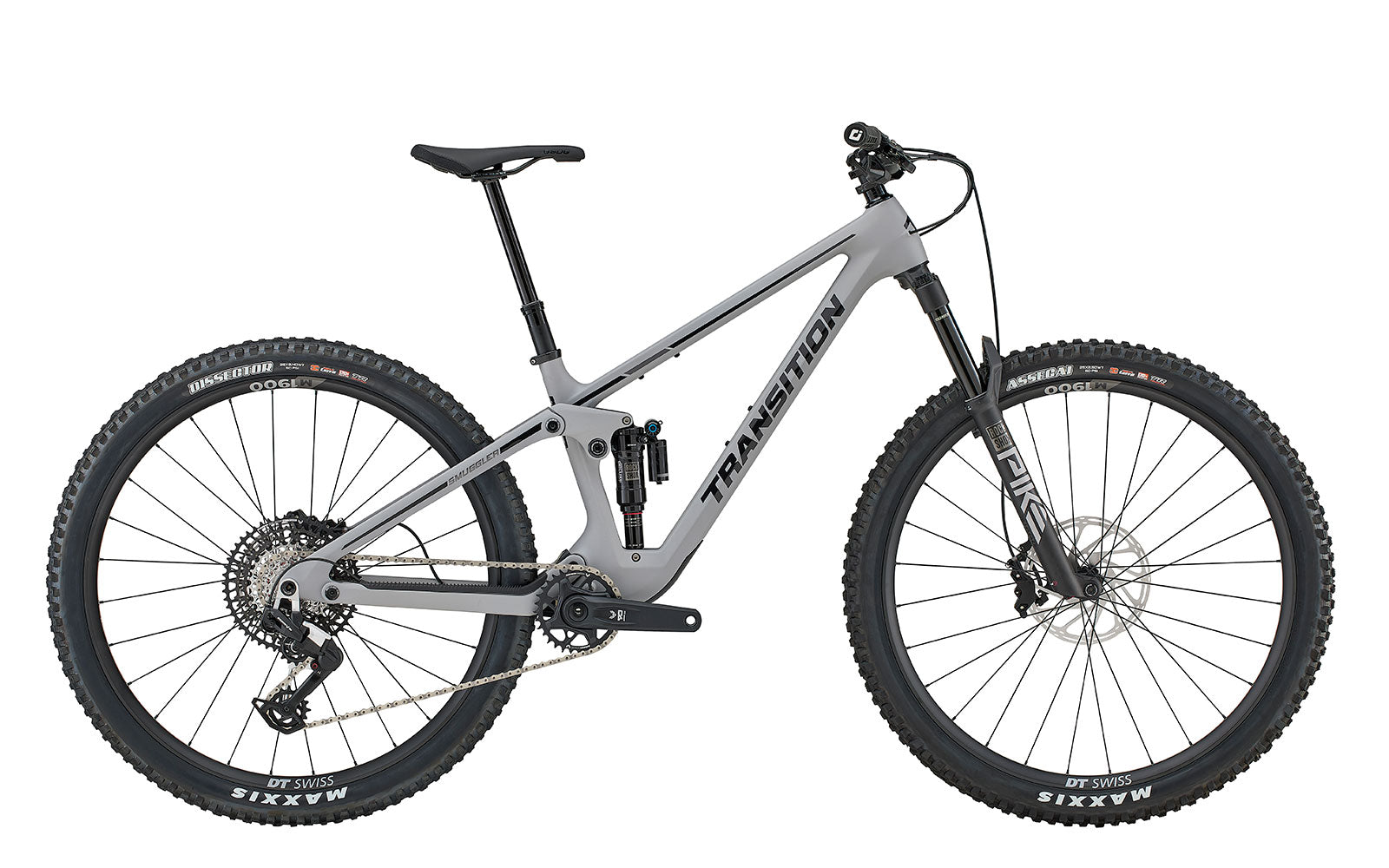

Smuggler Carbon Eagle 90 - Slab Grey

Overview

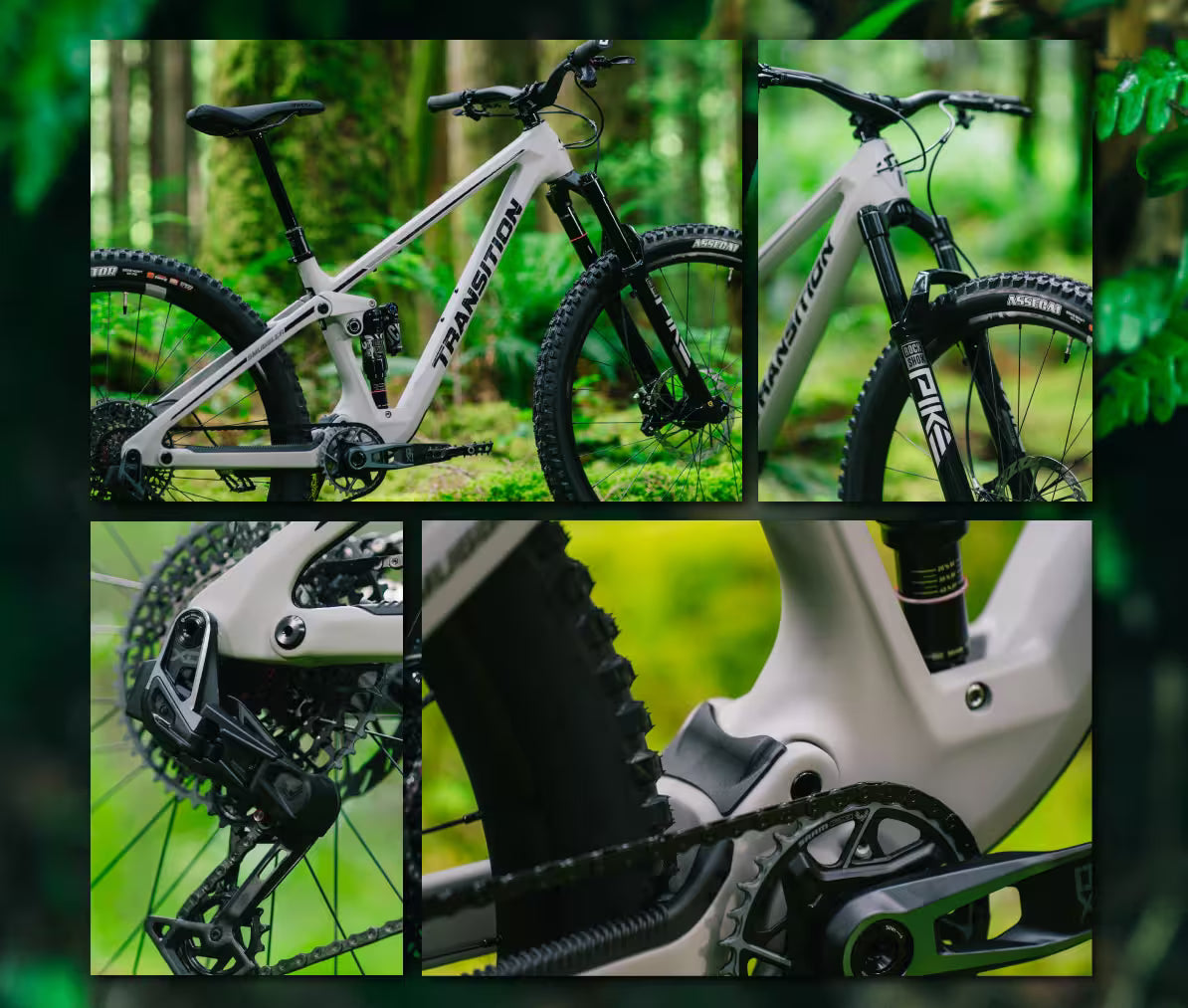

The Transition Smuggler Carbon Eagle 90 delivers aggressive trail performance in a lightweight carbon package. Built for technical descents and demanding terrain, this bike combines responsive handling with the durability serious riders demand. The carbon frame sheds weight without sacrificing stiffness, while the SRAM Eagle drivetrain offers wide-range gearing for climbing and speed. Designed for riders who want precision control on rocky, rooty trails without the complexity of full suspension. Perfect for intermediate to advanced mountain bikers tackling steep, technical courses.

Features

• Dual 29" Wheels - Clearance to run up to 2.4" tires.
• 140mm Front and 130mm rear travel - The perfect amount of travel for moving around the mountains
• Drop in Headset Bearings - Allows for simple installation and servicing, saves unnecessary weight, and is more durable than traditional press-in headset cups.
• Improved Cable Routing - Clean headtube cable routing for precise cable management. Cable entry near the front of the headtube insures less frame contact during handlebar rotation and better overall looks.
• Internal Cable Routing - Guide tubes inside the frame for super easy setup
• Size Specific Chainstays - As the frame sizes grow, so do the chainstays to keep rider weight balanced on the bike
• 27% Shock Progression - Allows the bike to be incredibly responsive to the trail while still being able to take large hits
• Gear Accessory Mount

Specifications

• Frame: Smuggler Carbon 130mm
• Suspension:
  • Front (Fork): RockShox Pike Select+ (140mm)
  • Rear: RockSockx Super Deluxe Select+ (210x50mm)
  • Headset: FSA no. 42/48/ACB
  • Stem: ANVL Swage (40mm)
  • Handlebar: ANVL Mandrel Alloy 35
    • SM (800x20mm)
    • MD/LG/XL (800x30mm)
    • XXL (800x40mm)
  • Seatpost: OneUp Dropper Post
    • SM: (150mm)
    • MD (180mm)
    • LG (210mm)
    • XL/XXL (240mm)
  • Brakes: SRAM Motive Bronze
  • Rotors: SRAM Centerline (200/180mm)
  • Drivetrain:
    • Shifter: SRAM Eagle 90 MMX
    • Crank: SRAM Eagle 90 DUB (30t/165mm)
    • Chain: SRAM GX Eagle Transmission
    • Cassette: SRAM XS 1275 (10-52t)

  SMUGGLER CARBON EAGLE 90 GEOMETRY	SM	MD	LG	XL	XXL
  A.REACH	430	460	485	510	535
  B.STACK	607	616	625	635	644
  C.EFFECTIVE TOPTUBE LENGTH	555	588	617	645	670
  D.SEATTUBE LENGTH (CARBON)	360	390	430	460	490
  D.SEATTUBE LENGTH (ALLOY)	375	390	430	460	490
  E.EFFECTIVE SEATTUBE ANGLE	79.3	78.6	78.1	77.6	77.3
  F.SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE	600	660	720	780	820
  G.ACTUAL SEATTUBE ANGLE	72	72	72	72	72
  H.HEADTUBE LENGTH	100	110	120	130	140
  I.HEADTUBE ANGLE	65	65	65	65	65
  J.CHAINSTAY LENGTH (CARBON)	435	435	440	440	440
  J.CHAINSTAY LENGTH (ALLOY)	437	437	443	443	443
  K.WHEELBASE (CARBON)	1179	1213	1247	1277	1306
  K.WHEELBASE (ALLOY)	1181	1215	1250	1280	1309
  L.BOTTOM BRACKET DROP	35	35	35	35	35
  M.ESTIMATED BOTTOM BRACKET HEIGHT	340	340	340	340	340
